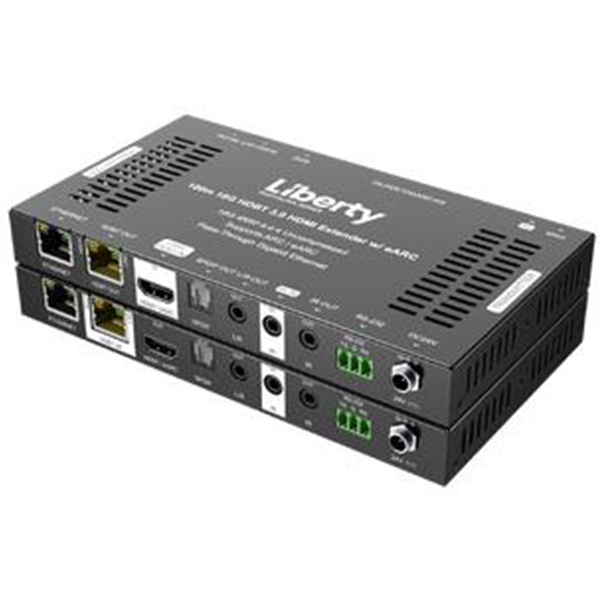

Features and BenefitsOverview: Transmit flawless zero-latency Video up to 4K60 4:4:4, HDR10, Dolby Vision, Multi-Channel Audio, eARC / ARC, Pass Gigabit Ethernet, IR, & RS232 over one Category Cable up to 100 meters over Cat6a U/FTP or above.Transmitter Ports: Front panel led indicators, 2 x 3.5mm female jacks for IR communication, 1 x female HDMI type A, 1 x female HDBaseT 3.0 RJ45 port, 1 x female LAN RJ45 Gigabit ethernet port, 1 x female TOSLINK connector, 1 x Reset buttonReceiver Ports: Front panel led indicators, 2 x 3.5mm female jacks for IR communication, 1 x female HDMI type A, 1 x female HDBaseT 3.0 RJ45 port, 1 x female LAN RJ45 Gigabit Ethernet port, 1 x female TOSLINK connector, 1 x Reset buttonVideo Resolutions: Supports a full range of resolutions up to 4K60 4:4:4Dynamic Metadata HDR: HDR formats such as Dolby Vision, HDR10, HLGAudio Protocols: DTS-HD, Dolby TrueHD, 7.1ch digital audio, Dolby Atmos, DTS-X, and all other digital audio standard formatseARC/ARC Support: ARC & eARC up to 8 channels from the Receiver back to the Transmitter which includes Dolby Atmos and DTS-X, TOSLINK supporting S/PDIF up to 5.1 channels. Toslink digital audio extension and Toslink audio de-embedding up to 5.1Control Protocols: Extend bi-directional IR, RS-232, CEC, and EthernetCommercial Design: Eliminate cable clutter by extending multimedia signals using two metal chassis with vented slots for heat dissipation. Provided mounting brackets and screws allow you to mount the devices behind a display, inside a closet, on an equipment rack, or other various locationsCompliance: HDBaseT 3.0, HDMI 2.0/1.4 backwards compatible, HDCP2.3/ 2.2/1.4 backwards compatible Ethernet Data Transfer Rate: Pass up to 1 Gigabit of Ethernet speedPower Over Cable (PoC) - PoC allows one power adapter placed on either side to power both the transmitter and receiverPackage includes: HDMI HDBT3.0 eARC Extender Set (Transmitter & Receiver units,) two IR blasters, external power supply, mounting brackets, and user manualComplete Plug and Play: No additional setup or configurationCompatible HDMI Source Devices: HDMI sources, such as gaming consoles, AVRs, computer PCs, Blu-ray players, and media playersCompatible HDMI Display (snyc) Devices: HDMI displays, monitors, projectors, and HDTVsOther: This kit is point-to-point and comes with a Transmitter and Receiver. It’s not intended to work through routers or network switchesCabling: For reliable, full featured performance, and to support all resolutions / capabilities of all HDBaseT 3.0 devices, shielded Cat6A U/FTP or above must be used.Country of Origin: Taiwan TAA CompliantRegulatory approvals: FCC, CE, RoHS

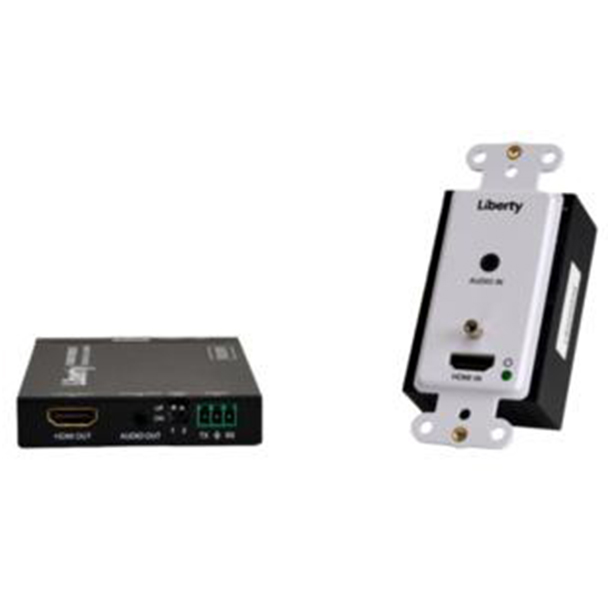

Features and BenefitsComplete set includes Wall plate TX, RX, Power supply, cover plateExtend HDMI up to 4K & Analog Audio signals up to 70 meters. HDCP2.2 CompliantExtends RS232 & 1 way PoC from RX to wall plate TXSupports video up to 4K2K@30Hz (4:4:4), 4K2K@60Hz (4:2:0) 10.2GSupports all HDMI audio formatsSingle cable 40m for 4K / 70m for 1080PRS232 & CEC pass-throughDedicated 3.5mm audio independent from the HDMI signalRemote power from receiver to wall plate transmitterTX is standard US 1-gang decorator formatHDCP 2.2 compliantApplicationsExtend HDMI source and audio source at the same time or independentlyExtension of HDMI and 3.5mm audio signalsEducation, commercial video, residential

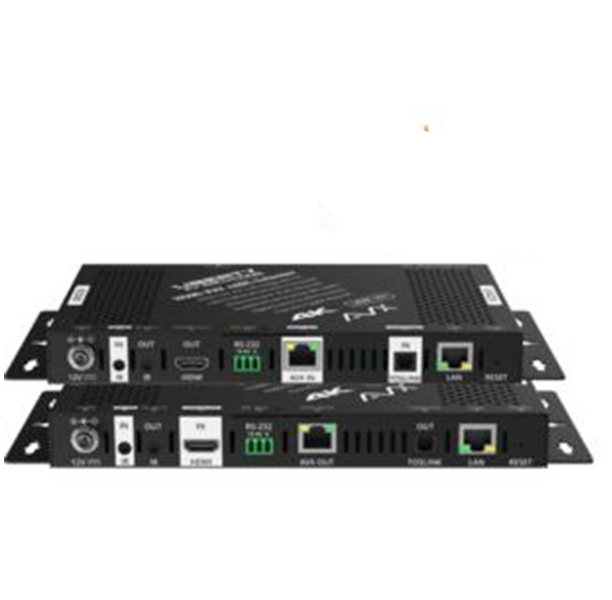

Features and BenefitsOverview: Transmit flawless zero-latency Video up to 4K60 4:4:4, HDR10, Dolby Vision, Multi-Channel Audio, eARC / ARC, Pass Gigabit Ethernet, IR, & RS232 over one Category Cable up to 100 meters over Cat6a or above, or up to 55m over Cat6. Built around the well established IEEE ethernet standard, AVX technology ensures ultimate performance using established standards and without the need for shielded cable on most installationsTransmitter Ports: Front panel led indicators, 2 x 3.5mm female jacks for IR communication, 1 x female HDMI type A, 1 x female AVX RJ45 port, 1 x female LAN RJ45 port, 1 x female TOSLINK connector, 1 x Reset buttonReceiver Ports: Front panel led indicators, 2 x 3.5mm female jacks for IR communication, 1 x female HDMI type A, 1 x female AVX RJ45 port, 1 x female LAN RJ45 port, 1 x female TOSLINK connector, 1 x Reset buttonVideo Resolutions: Supports a full range of resolutions up to 4K60 4:4:4Dynamic Metadata HDR: HDR formats such as Dolby Vision, HDR10, HLGAudio Protocols: DTS-HD, Dolby TrueHD, 7.1ch digital audio, Dolby Atmos, DTS-X, and all other digital audio standard formatseARC/ARC Support: ARC & eARC up to 8 channels from the Receiver back to the Transmitter which includes Dolby Atmos and DTS-X, TOSLINK supporting S/PDIF up to 5.1 channels. Toslink digital audio extension and Toslink audio de-embedding up to 5.1Control Protocols: Extend bi-directional IR, RS-232, CEC, and Ethernet controlCommercial Design: Eliminate cable clutter by extending multimedia signals using two metal chassis with vented slots for heat dissipation. Provided mounting brackets and screws allow you to mount the devices behind a display, inside a closet, on an equipment rack, or other various locationsCompliance: AVX 1.0, HDMI 2.0/1.4 backwards compatible, HDCP2.3/ 2.2/1.4 backwards compatible, Dolby Ethernet Data Transfer Rate: Pass up to 1 Gigabit of Ethernet speedPower Over Ethernet (PoE) - PoE allows one power adapter on the transmit side to power both the transmitter and receiverDimensions: 215mm/8.42” L x 25mm/0,98” W x 140mm/5.5” H) Package includes: HDMI AVX eARC Extender Set (Transmitter & Receiver units,) two IR blasters, external power supply, mounting brackets, and user manualComplete Plug and Play: No additional setup or configurationCompatible HDMI Source Devices: HDMI sources, such as gaming consoles, AVRs, computer PCs, Blu-ray players, and media playersCompatible HDMI Display (snyc) Devices: HDMI displays, monitors, projectors, and HDTVsOther: This kit is point-to-point and comes with a Transmitter and Receiver. It’s not intended to work through routers or network switchesCountry of Origin: ChinaRegulatory approvals: FCC, CE, RoHSApplicationsPerfect for sports bars, restaurants, home theater and residential systems, fitness facilities and gyms , multi-purpose spaces, and other applications
Features and BenefitsComplete set includes TX, RX, mounting tabs, IR flasher/sensor, & power supplyExtend HDMI signals up to 4K, control, & power up to 70mExtend bi-directional RS232, IR, & flexible PoC (Power on either end)CEC supportedHDCP 2.2 CompliantDiagnostic LEDsBidirectional Wideband IR and RS232 pass throughFlexible power design (use power supply at TX or RX)Locking power connectorApplicationsUses any Cat6 or greater twisted pair cablingExtension of HDMI and control signalsLimited access to power for extenders on both endsIdeal for Digital Signage, Home Theater, Commercial Video
Features and BenefitsComplete set includes TX, RX, mounting tabs, IR flasher/sensor, & power supplyExtend HDMI signals up to 4K, control, & power up to 70mExtend bi-directional RS232, IR, & flexible PoC (Power on either end)CEC supportedHDCP 2.2 CompliantDiagnostic LEDsBidirectional Wideband IR and RS232 pass throughFlexible power design (use power supply at TX or RX)Locking power connectorApplicationsUses any Cat6 or greater twisted pair cablingExtension of HDMI and control signalsLimited access to power for extenders on both endsIdeal for Digital Signage, Home Theater, Commercial Video

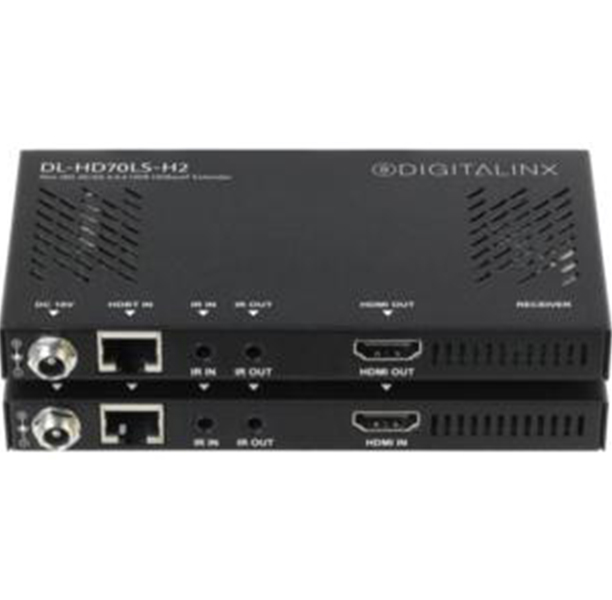

Features and BenefitsComplete set Includes TX, RX, power supply, and IR flasher/emitterExtend HDMI 2.0 signals up to 4K@60Hz / 4:4:4 up to 70m (4K 40m / 1080P 70m)Extends bi-directional IR. Flexible PoC (Power on either end)Supports HDR10HDCP 2.2 compliantFlexible power design (use power supply at TX or RX)Includes re-clocking circuitry for maximum device compatibilityLocking power connector (power supply included)ApplicationsExtend HDMI source up to 18GResidential home theater extension4K HDR10Residential, commercial, house of worship, higher education
Features and BenefitsComplete set Includes TX, RX, power supply, and IR flasher/emitterSupport resolutions up to 4K@60Hz 4:2:0 / 8 bit color; CEC supportedExtends bi-directional IR and flexible PoC (Power on either end)HDCP 2.2 compliantBidirectional wideband IRPower from either endLocking power connector (power supply included)ApplicationsExtension of HDMI and control signalsLimited access to power for extenders on both endsIdeal for digital signage, home theater
