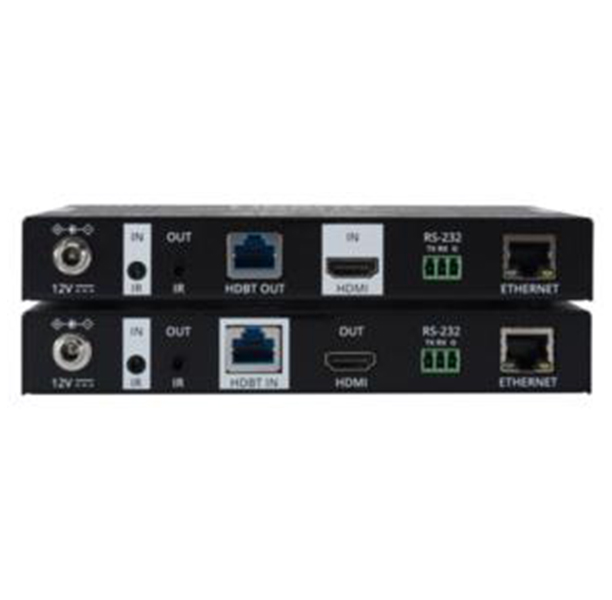

Features and BenefitsComplete set includes TX, RX, mounting tabs, IR flasher/sensor, & power supplyExtend HDMI signals up to 4K up to 100m (4K 70m / 1080P 100m)Extends bi-directional IR, RS232 and ethernet pass through. Flexible PoC (Power on either end)Built-in surge protectionDiagnostic LEDsHDCP 2.2 compliantBidirectional Wideband IR and RS232 pass-through100-BaseT Ethernet pass-throughFlexible power design (use power supply at TX or RX)Locking power connector (power supply included)ApplicationsUses any Cat6 or greater twisted pair cablingExtension of HDMI and control signalsLimited access to power for extenders on both endsIdeal for Digital Signage, Home Theater, Commercial Video

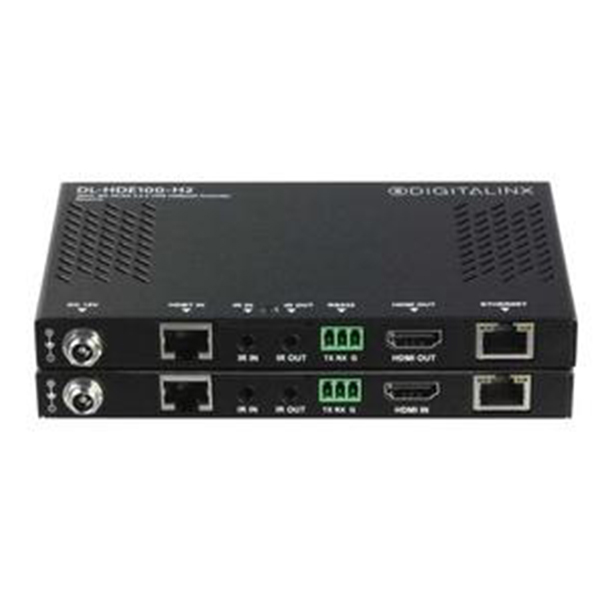

Features and BenefitsComplete set includes TX, RX, power supply, and IR flasher/emitterExtend HDMI 2.0 signals up to 4K@60Hz / 4:4:4 up to 100m (4K 70m / 1080P 100m)Extends bi-directional IR, RS232 and ethernet pass through. Flexible PoC (Power on either end)Supports HDR10HDCP 2.2 compliantFlexible power design (use power supply at TX or RX)Includes re-clocking circuitry for maximum device compatibilityLocking power connector (power supply included)ApplicationsExtend HDMI source up to 18GResidential home theater extension4K HDR10Residential, commercial, house of worship, higher education
Features and BenefitsSignal Extension: Transmit 4K60 4:4:4 and all HDR formats including Dolby Vision and HDR10, IR, & RS232 up to 100m over a single Cat6A F/UTP or above cableFlexible Power: Single power supply can be applied at the transmitter or receiverHDBaseT 3.0 Technology: Utilizing the latest HDBaseT 3.0 technology, the only technology capable of transmitting uncompressed & flawless HDMI 2.0 and HDR signals, DL-HDE100-H3 delivers the exact performance of direct HDMI cable connectionPattern Generator Built in: Built in test pattern generator with both HDCP compliant and non-compliant signals for easy testing without the need of a sourceHigh / Low Bandwidth Mode Selection: Default High bandwidth mode extends fully uncompressed signals. When lower grade cabling such as Cat5e or 6 must be used, low bandwidth mode can be used engaging visually lossless compressionAudio De-Embed Analog and digital audio de-embeddingEthernet Pass-Through: Pass-through gigabit ethernetEDID Management: Built in EDID managementHDCP Compliant: HDCP2.3, 2.2, 1.4 compliantFor reliable, full featured performance, and to support all uncompressed resolutions / capabilities of all HDBaseT 3.0 devices, shielded Cat6A U/FTP or above must be used.TAA Compliant

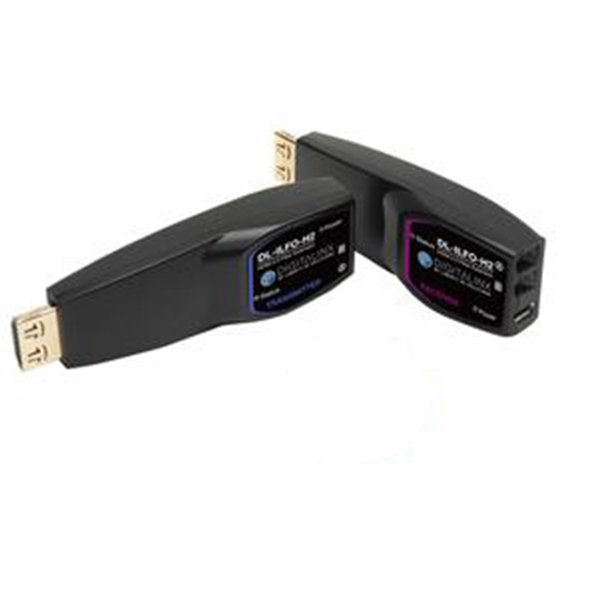

Features and BenefitsDPL certified – tested for true 18G superior optical performance without compression or data loss over 200m distanceExtends 4K UHD (4096x2160) at 60Hz (RGB &YCbCr: 4:4:4)Male HDMI connectors for direct connection to devices eliminates the need for short HDMI cableHigh-Retention HDMI connectors prevent accidental disconnectionCompletely immune to RF and EMI interferencSupports Static and Dynamic HDR (HDR 10bit / 12bit compliant)18G compliantSold as a set with complete TX, RX, & power adaptersCompact designDuplex LC connectors on both transmitter and receiverSupports HDMI 2.0b, CEC, HDCP 2.2 and static and dynamic HDRWorks with industry standard duplex LC multimode fiberInternational power supplies are includedApplications18G 4K HDMI applicationsExtend very high bandwidth HDMI with Audio and controlDigital Signage, Boardroom, Education, Home Theater, Medical

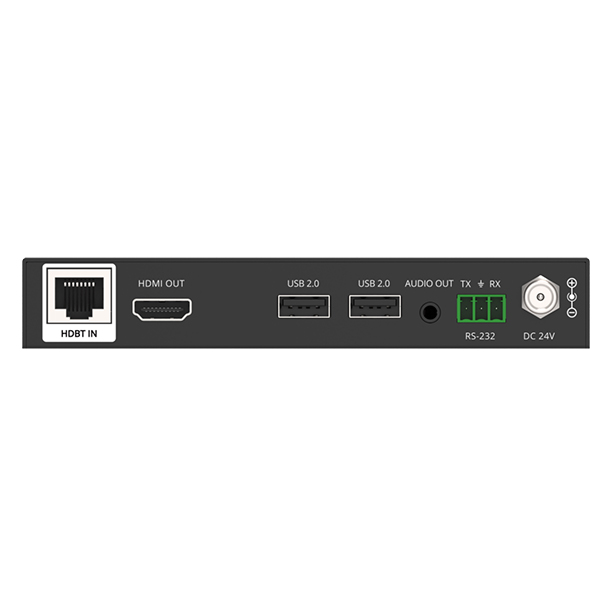

Features and BenefitsBox format Transmitter and Receiver set with accessoriesUncompressed HDMI 2.0 extension featuring HDBaseT 3.0HDMI 2.0b, HDCP 2.2 18Gbps 4K60 4:4:4 to 40m over Cat6a U/FTP or above, 10.2Gbps 4K60 4:2:0 to 70mSupports HDR, HDR10+, Dolby Vision LLM, HLGSupports USB2.0 High Speed (1) Host (2) Clients on TX, (2) Clients on RXSupports Isochronous USB data for maximum camera compatibilitySupports audio de-embedding on TX and RXIncludes 24VDC 1A power supply and 4 mounting earsFor reliable, full featured performance, and to support all resolutions and USB bandwidth to the maximum capability of all HDBaseT 3.0 devices, Cat6A U/FTP or above must be used.ApplicationsFull UHD 4K60 18Gbps HDMI extension and signal routingCollaboration rooms with USB cameras, Education, Residential, & any application requiring HDMI & USBCollaboration system control for high res systems

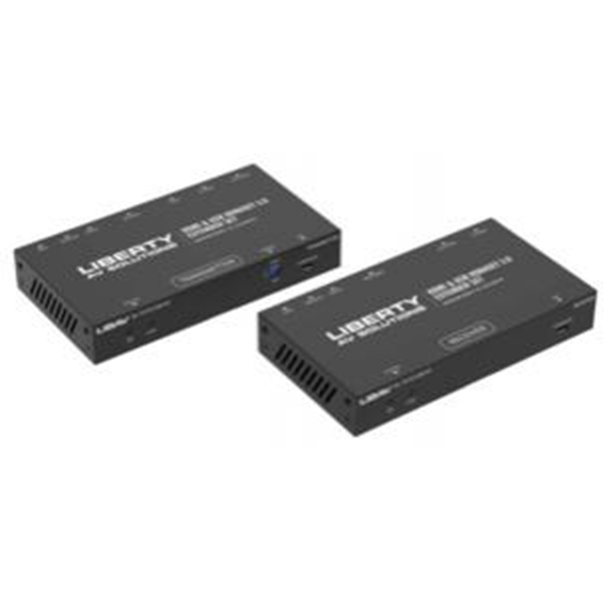

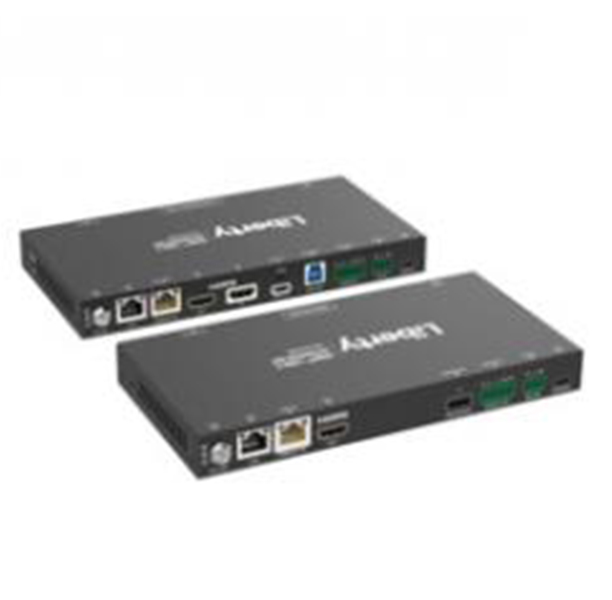

Features and BenefitsHDBaseT3.0 Uncompressed 4K60 & USB Transmitter & Receiver set with accessoriesUncompressed HDMI 2.0 extension over HDBaseT 3.0 offers resolution support up to 4K60 4:4:4 up to 100m, control, and USB2.0 with isochronous data support for cameras and other USB peripherals over Cat6A U/FTP or above cablingExtends 1Gb ethernet between TX & RX and also injects 1Gb ethernet into USB-C for true single cable connectivityHDMI / USB-C auto switching based on video sense or 5V detectionUSB-C full featured passes AV via ALT-DP, acts as a USB host, and provides up to 100w charging power to the host computer over USB-CHDMI 2.0b, HDCP 2.2 18Gbps 4K60 4:4:4 to 100m over Cat6a U/FTP or aboveSupports HDR, HDR10+, Dolby Vision LLM, HLGSupports USB2.0 High Speed (1) Host (2) Clients on TX, (2) Clients on RXSupports Isochronous USB data for maximum camera compatibilityAudio de-embed on both endsBuilt in pattern generator from TX or RX to help with testing and troubleshooting
Features and BenefitsHDBaseT3.0 Uncompressed 4K60 & USB Transmitter & Receiver set with accessoriesUncompressed HDMI 2.0 extension over HDBaseT 3.0 offers resolution support up to 4K60 4:4:4, control, and USB2.0 with isochronous data support for cameras and other USB peripheralsHDMI / USB-C auto switching based on video sense or 5V detectionUSB-C full featured passes AV via ALT-DP, acts as a USB host, and provides charging power up to 40w to the host computer over USB-C when the optional & included 2nd power supply is usedHDMI 2.0b, HDCP 2.2 18Gbps 4K60 4:4:4 supportSupports HDR, HDR10+, Dolby Vision LLM, HLGSupports 4K60 4:4:4 up to 40m and 4K30 or below up to 70m using Cat6A U/FTP or aboveSupports Isochronous USB data for maximum camera compatibilityAudio de-embed on RXAuto 4K to 1080P downscaling will automatically scale 4K signals to 1080P when connected to a 1080P displayEDID ManagementFor reliable, full featured performance, and to support all resolutions / capabilities of all HDBaseT 3.0 devices, shielded Cat6A U/FTP or above must be used.

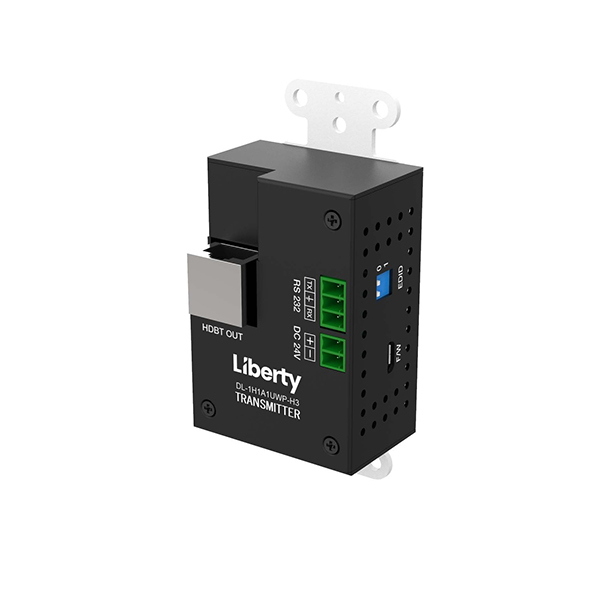

Features and BenefitsSingle Gang Decora style wall plate format Transmitter and standard style Receiver set with accessoriesUncompressed HDMI 2.0 & USB2.0 extension over HDBaseT 3.0HDMI 2.0b, HDCP 2.2 18Gbps 4K60 4:4:4 to 40m over Cat6a U/FTP or above, 10.2Gbps 4K60 4:2:0 to 70mSupports HDR, HDR10+, Dolby Vision LLM, HLGSupports USB2.0 High Speed (1) Host (2) Clients on TX, (2) Clients on RXSupports Isochronous USB data for maximum camera compatibilityAudio de-embed on RXIncludes 24VDC 1A power supply and 4 mounting earsFor reliable, full featured performance, and to support all resolutions / capabilities of all HDBaseT 3.0 devices, shielded Cat6A U/FTP or above must be used.
