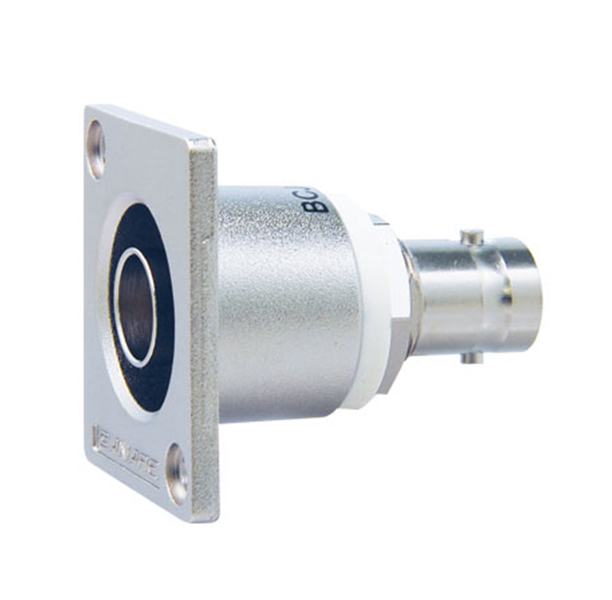

Beryllium copper (gold plated) is used on the center contact for its superior spring characteristics (Center contact: solder).75 ohm BNC Jack Plug (BCJ-D25HD,BCJ-D25HW,BCJ-D33UHD)Key Features and BenefitsReturn loss for BCJ-D: 20 dB @ 3 GHz, 15 dB @ 6 GHz, 10 dB @ 12Gold plated beryllium copper center contact.

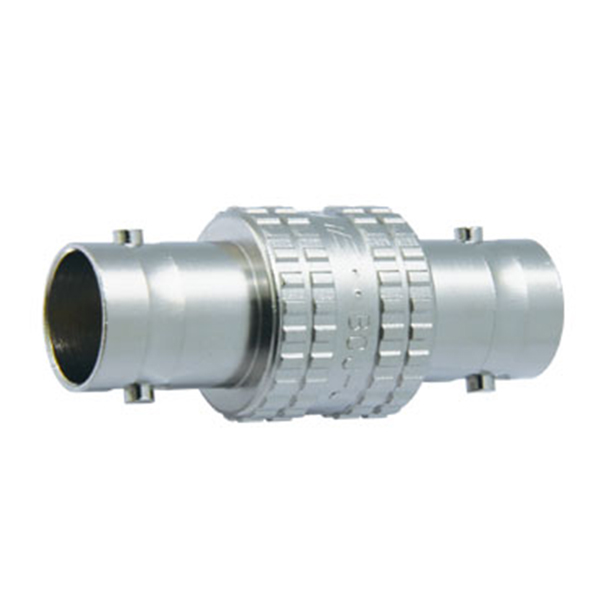

Gold plated beryllium copper center contact.Flush-mount receptacle prevents damage on the jack.Jack to Jack BCJ-JRK,BCJ-JRUK,BCJ-JRUDK,BCJ-JRUDBKKey Features and BenefitsRedesigned for 12G-SDI to minimize return loss.Return Loss: 26.4 dB @ 12 GHz, 15 dB @ 12 GHz

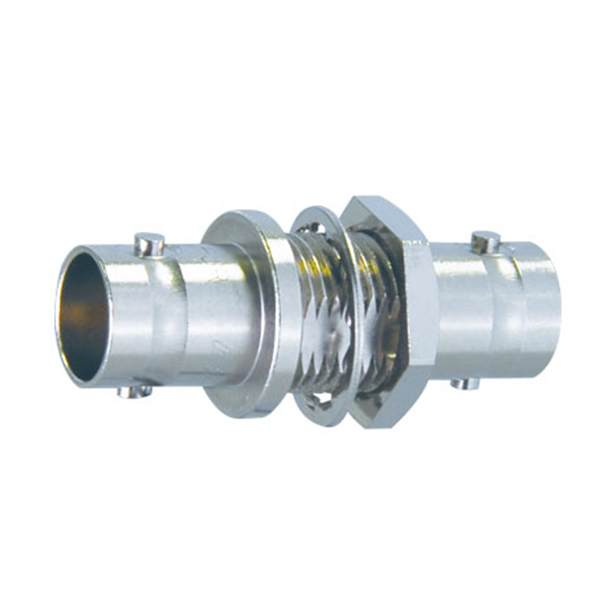

Gold plated beryllium copper center contact.Flush-mount receptacle prevents damage on the jack.Jack to Jack (BCJ-JRK,BCJ-JRUK,BCJ-JRUDK,BCJ-JRUDBK)Key Features and BenefitsRedesigned for 12G-SDI to minimize return loss.Return Loss: 26.4 dB @ 12 GHz, 15 dB @ 12 GHz

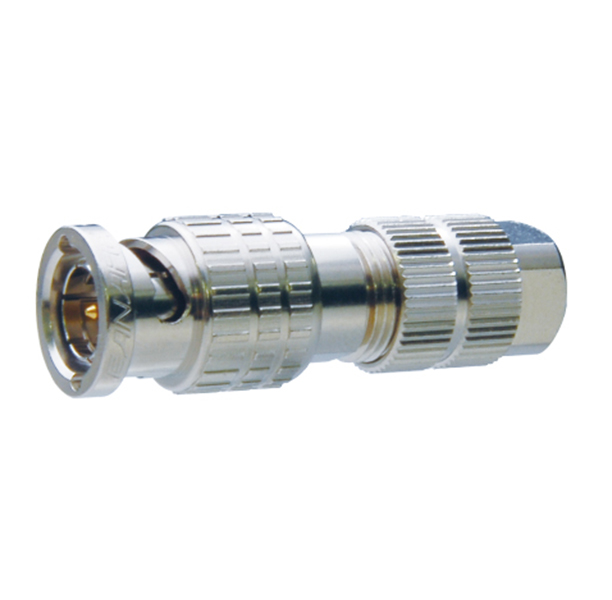

Includes 1/4 watt resistance.Return loss for BCP-TK: 26.4 dB @ 3GHz, 15dB @ 12GHzOur unique elongated body design enables easy attachment and removal.75 ohm BNC Termination Plugs (BCP-TK,BCP-TK-CH)

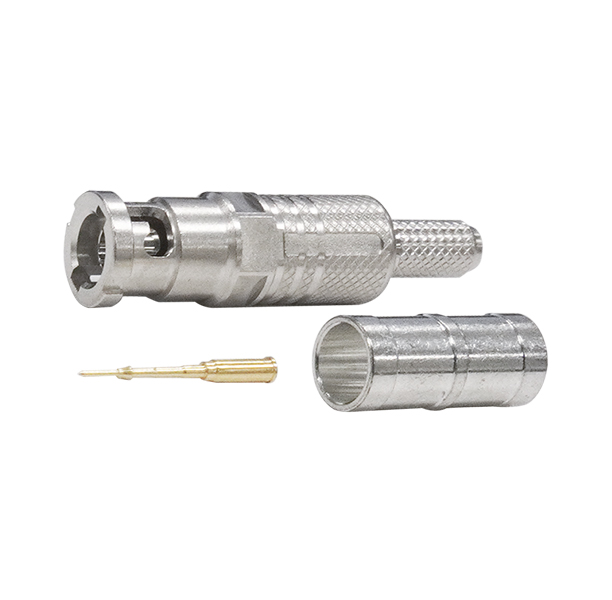

75 ohm Micro BNC ConnectorsLock mechanism used on insulation improves reliability by preventing shifting or detaching of the center pin.
Slim design: OD 12 mmCompatible with 75 ohm BNC receptacles.Canare crimp design ensures quick and reliable installation.Gold plated “snap locks” center pin and beryllium copper outer contact.Return Loss: 26.4 dB @ 1.5GHz (Excludeing MBCP-C25F)MBCP-C Series MBCP-C25F,MBCP-C3F, MBCP-C4 ,MBCP-C4F,MBCP-C53,MBCP-C5F

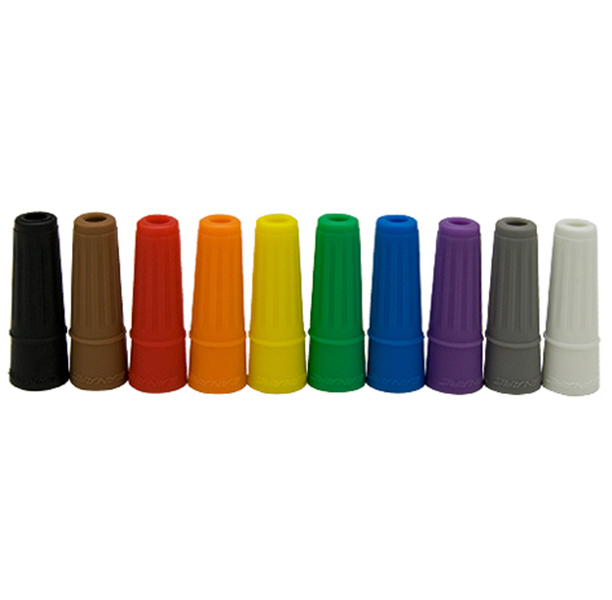

Various of Colors for Matching Cable Jacket or Channel ID Call-outs.Prevent Cable Damage in Flexing Fatigue.CB0x Series (CB01,CB02,CB03,CB04,CB05A)Key Features and BenefitsOur best selling connector boots for Canare BNC, TNC crimp plugs.

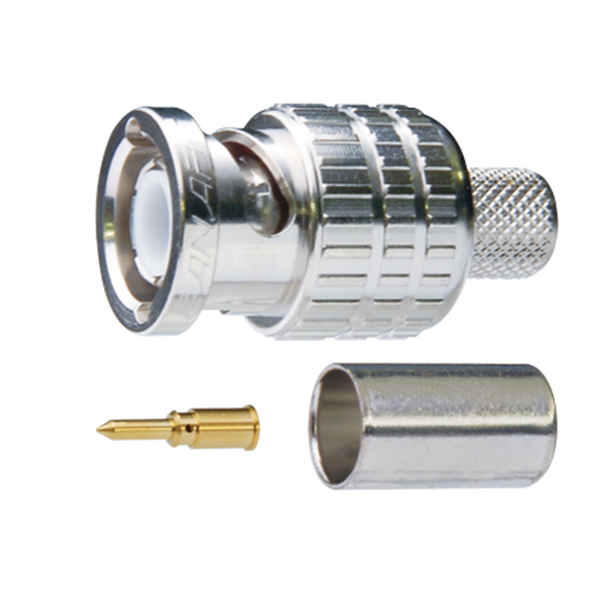

Lock mechanism used on insulation improves reliability by preventing shifting or detaching of the contact pins.Elongated body design for straight type enables easy attachment and removal.Gold plating on the contact pin prevents deterioration, even after years of use.Use of crimping to attach the connectors ensures quick, reliable installation.Straight (BP-C3,BP-C31,BP-C4,BP-C5,BP-C51,BP-C5FA,BP-C51F)
