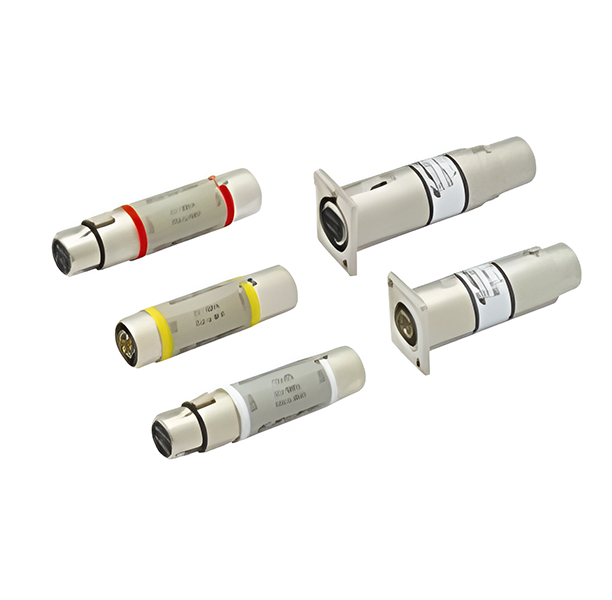

Transformers Passively convert AES/EBU digital audio signals from 110N/XLR3 output to a 750 BNC coaxial cable and then back again to a 110N/XLR3 input

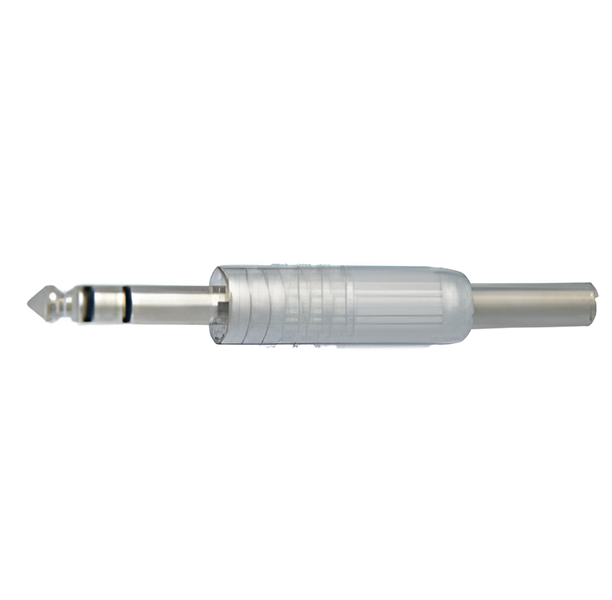

Canare offers professional-grade phone plugs designed for audio, broadcast, and musical instrument applications. These plugs are known for their durability, superior signal integrity, and compatibility with a wide range of audio equipment.

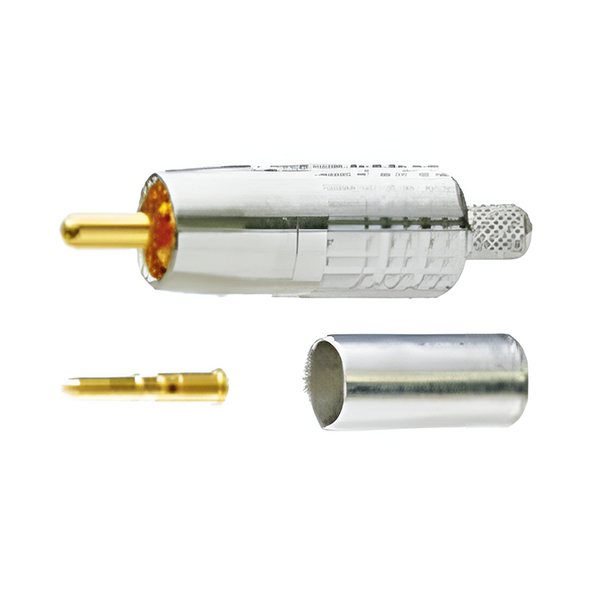

Ideal for consumer audio and video applications, Canare's RCA connectors offer secure connections with minimal signal loss.

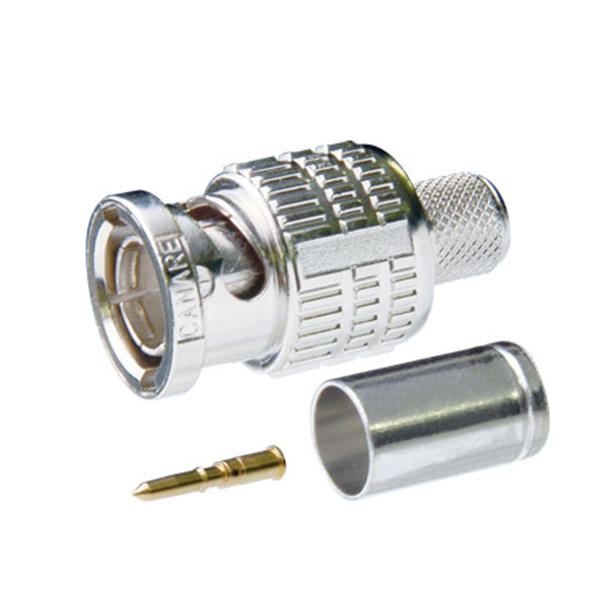

Our unique elongated body design enables easy attachment and removal.Gold plating on the contact pin prevents deterioration, even after years of use.Lock mechanism used on insulation improves reliability by preventing shifting or detaching of the center pin.BCP-A Series (A25, A25F,A3, A31, A3AHD,A3F,A4,A42,A4F,A5,A52,A55,A5F,VA3,VA5)Key Features and BenefitsReturn Loss:@26.4dB@2GHz、20.8dB@3GHz(*1)Canare crimp design ensures quick and reliable installationGold plated “snap locks” center pin and beryllium copper outer contact.Elongated body design for stable finger grip.Position mark on the body makes it easier to check if the connector is locked.

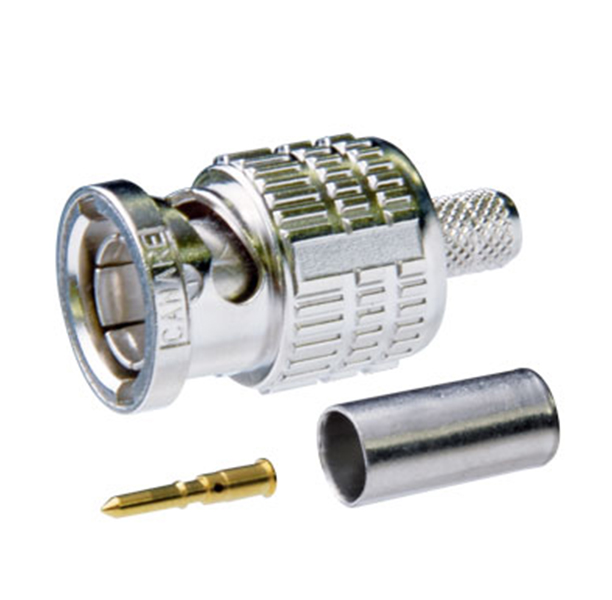

Our unique elongated body design enables easy attachment and removal.Gold plating on the contact pin prevents deterioration, even after years of use.Lock mechanism used on insulation improves reliability by preventing shifting or detaching of the center pin.BCP-B Series ( B25HD,B25HW,B26,B28,B3F, B31F,B4F,B45HW, B53,B56,B5F,B51F)Key Features and BenefitsReturn Loss:@26.4dB@2GHz、20.8dB@3GHz(*1)Canare crimp design ensures quick and reliable installationGold plated “snap locks” center pin and beryllium copper outer contact.Elongated body design for stable finger grip.Position mark on the body makes it easier to check if the connector is locked.

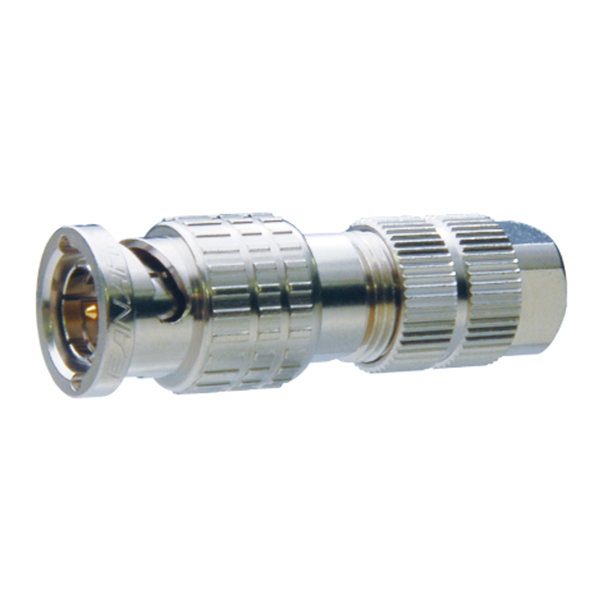

The tubular (ferrule) section is silver plated to make soldering easier.Cable stripper TS100E can be used. (Excluding BCP-H31F, BCP-H51F)Return Loss: 26.4 dB @ 1 GHzBCP - H series( BCP-H3B,BCP-H31F,BCP-H45HW,BCP-H5B,BCP-H51F,BCP-H5/1,)
Our unique elongated body design enables easy attachment and removal.Gold plating on the contact pin prevents deterioration, even after years of use.Lock mechanism used on insulation improves reliability by preventing shifting or detaching of the center pin.BCP-D Series(BCP-D33UHD,BCP-D33UHW,BCP-D55UHD,BCP-D55UHW,BCP-D57,BCP-D8UHD)Key Features and BenefitsOur highest performance BNC plug newly developed for 12G-SDISufficient margin against SMPTE standard.Return Loss: 20 dB @ 6 GHz, 15 dB @ 12 GHzThe BCP-D series takes over features from Canare's BNC connectors, such as the elongated body design and the snap locks center pin.Canare crimp design ensures quick and reliable installation.

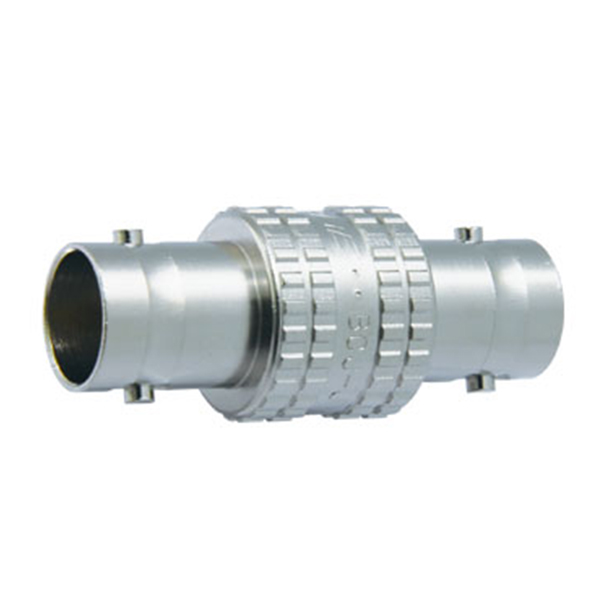

BNC Jack to Jack Extension AdapterGold plated beryllium copper center contact.Return loss for BCJ-JK: 15 dB @ 12GHz
