Digital Audio

images

24-1P-DIG-AUDIO

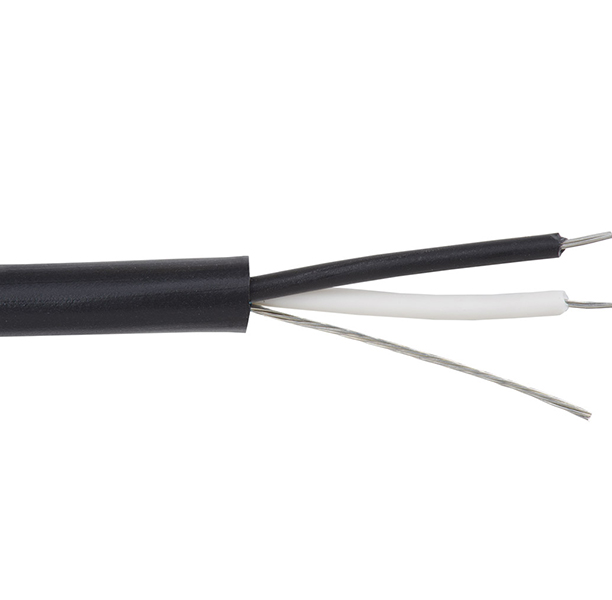

ASE/EBU 110 Ohm Digital Audio 24 AWG 1 Pair Reel7-strand annealed tinned copper conductorsCellular polyethylene dielectric insulationTightly twisted and shieldedSemi-pressure extruded PVC jacket110-Ohm impedance, 11.5 pF/FT ultra-low capacitanceNEC CM, CEC CMG FT4, RoHS compliant1000 foot spools

View More
images

20-CMR-VIDEO

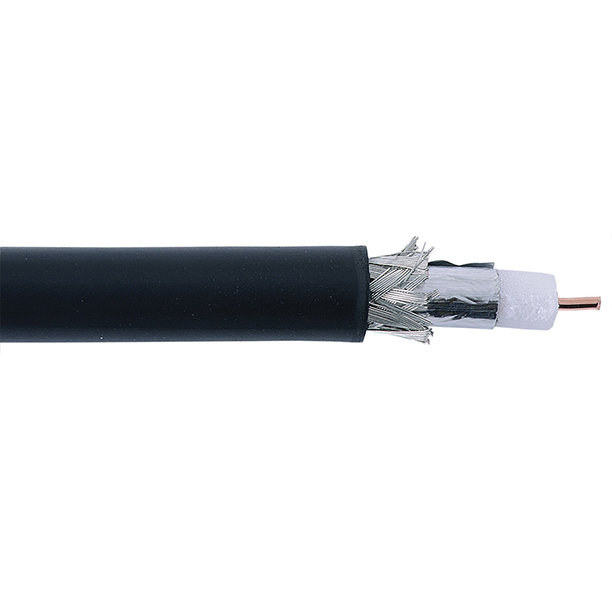

Serial digital RG59 Dual Shield 4.5 GHz Coaxial Cable Reel20 AWG solid annealed bare copper conductorGas-injected cellular polyethylene dielectric100% coverage aluminum/poly/aluminum foil inner shield95% coverage tinned copper braid shieldFlame rated PVC jacket4.5 GHz sweep, very low loss, excellent SRLNEC CMR, CEC CMR FT4, RoHS compliant1000 foot spools

View More
images

20-CMP-VID-COAX

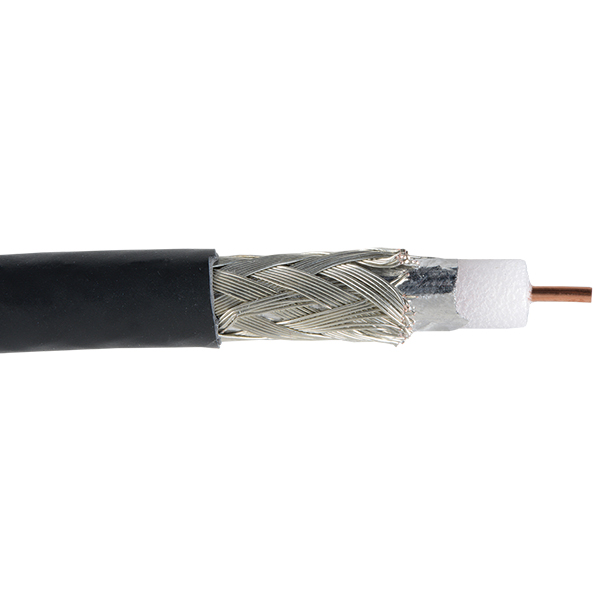

Digital RG59 Dual Shield 4.5 GHz Plenum Coaxial Cable Reel20 AWG solid annealed bare copper conductorGas-injected cellular fluoropolymer dielectric100% coverage aluminum/poly/aluminum foil inner shield95% coverage tinned copper braid shieldPlenum rated PVC jacket4.5 GHz sweep, very low loss, excellent SRLNEC CMP, CEC CMP FT6, RoHS compliant1000 foot spools

View More
