Data - Category / LAN

images

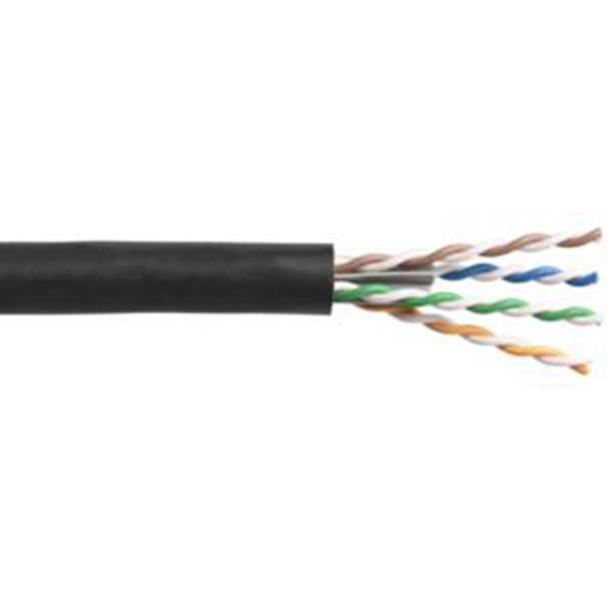

24-4P-L6-EN

U/UTP EN Series 23 AWG 4 Pair Unshielded Cable Reel23 AWG solid bare copper conductorsHDPE, high-density polyethylene insulationColor striping on white conductorsVarying lay twisted pairs cabled on a common axisRipcord under the jacketFR-PVC, flame rated polyvinyl chloride jacketTested to 550 MHz with a positive ACR spec to 550 MHzThird party (UL, ETL) certified to category 6 performanceNEC rated CMR, CEC rated CMR, CMG FT4, RoHS compliant

View More
images

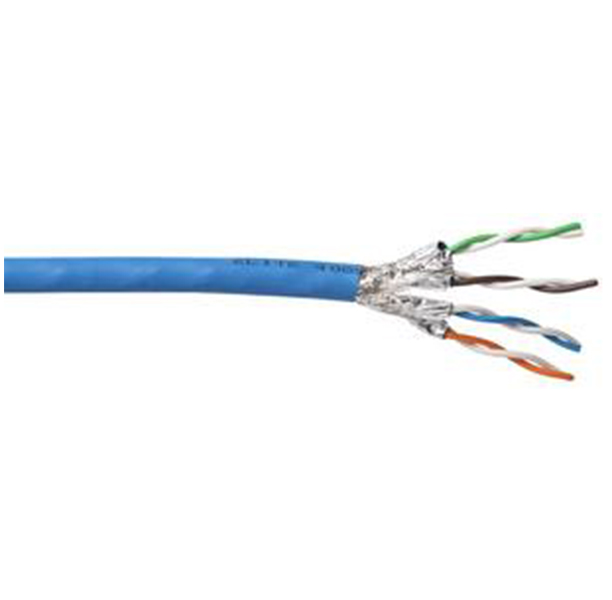

24-4P-L6SH

F/UTP 23 AWG 4 Pair Shielded Cable Reel23AWG Solid Bare Copper ConductorsCore of 4 twisted pairs with an overall foil shieldRiser rated Lead-Free PVC Jacketing3rd Party Certified to ANSI/TIA-568 Category 6 StandardNEC CMR, CEC CMR FT4, RoHS/REACH Compliant

View More
images

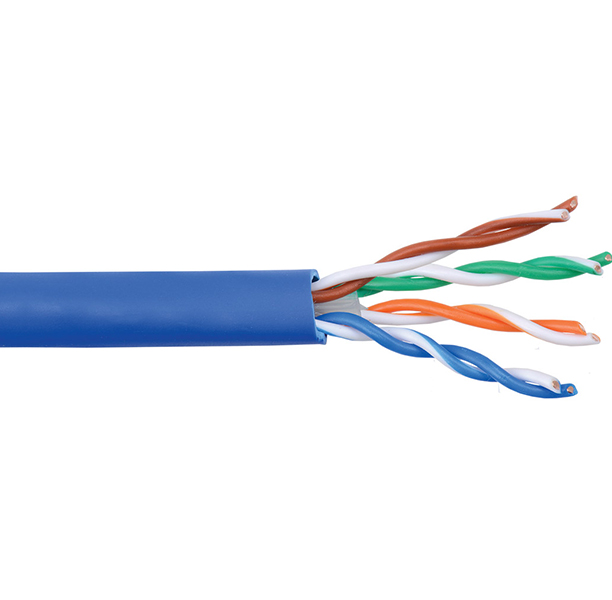

24-4P-L6-EN-DB

Direct Burial U/UTP EN Series 23 AWG 4 Pair Unshielded Cable Reel23 AWG annealed bare copper conductorsHDPE, high density polyethylene insulationTwisted pairs in varying lays and cabled togetherFlooding compound for water rejectionUV Stabilized polyethylene outer jacketSuitable for direct burial, sunlight resistant, RoHSANSI/TIA/EIA-568-C verified to category 6

View More
images

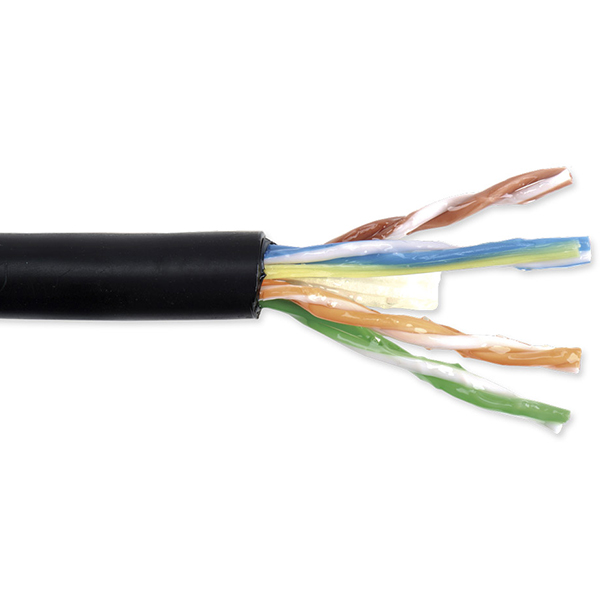

24-4P-L6A

U/UTP EN Series 23 AWG 4 Pair Unshielded Cable Reel23 AWG solid copper conductorsHigh-density polyethylene insulationVarying lay twisted pairs cabled on a common axisSeparator with each pair in its own intersticeFR-PVC, flame rated polyvinyl chloride jacketJacket includes spacing featureThird party (UL, ETL) certified to category 6A performanceFully certified to 500 MHzNEC rated CMR, CEC rated CMG FT4, RoHS compliant1000 foot spools standard

View More
images

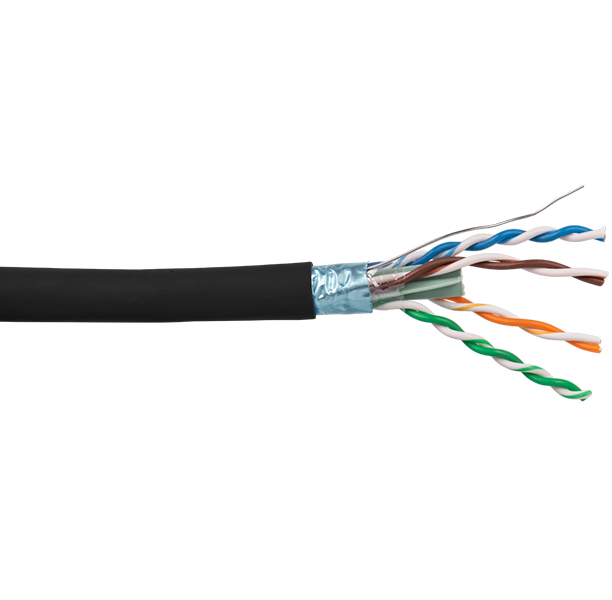

24-4P-L6ANS

Non-Continuity Shield (NCS) U/UTP Riser Reel23 AWG Solid Bare Copper ConductorsPolyolefin InsulationVarying lay twisted pairs cabled on a common axisFully encapsulated poly/foil/poly binderRiser rated Polyvinyl Chloride JacketThird Party (UL, ETL) certified to Category 6A performanceFully Certified to 500 MHzNEC Rated CMR, CEC Rated CMG FT4, RoHS Compliant1000 Foot Spools Standard

View More
images

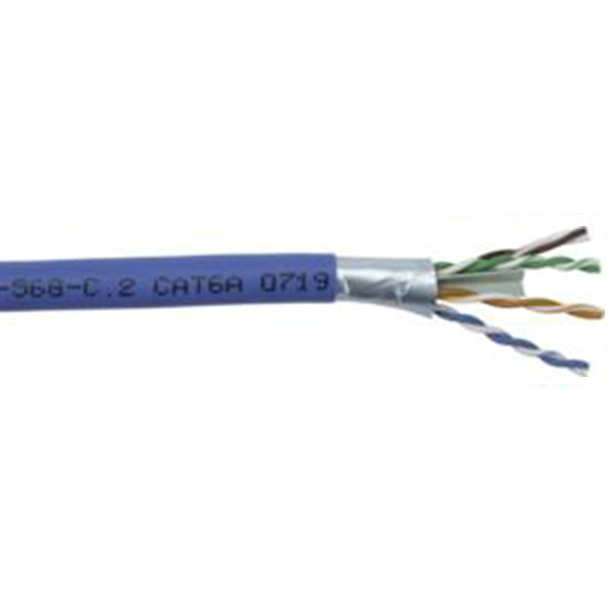

24-4P-L6ASH

F/UTP EN Series 23 AWG 4 Pair Shielded Cable ReelSolid annealed bare copper conductorsHigh density polyethylene insulation4 pairs twisted in varying lays and cabledOverall aluminum/poly foil shield with drainFlame rated PVC jacketTIA/EIA-568-C Category 6ANEC CMR, CEC CMR FT4, RoHS compliant1000 foot spools

View More
images

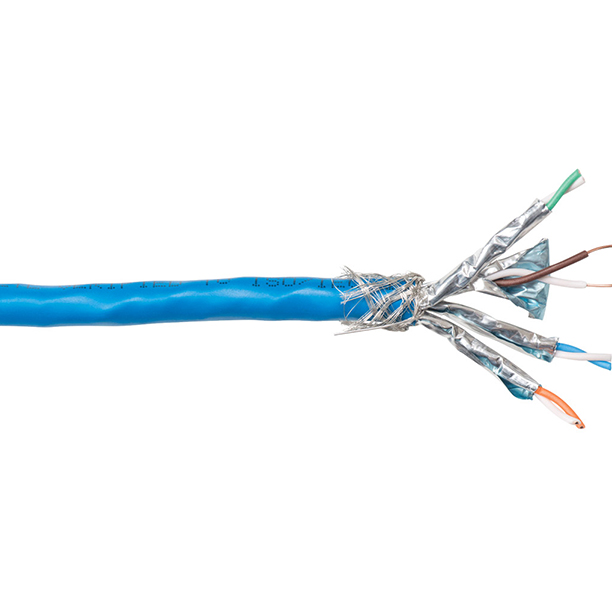

24-4P-L7SH

S/FTP Series Heavy 23 AWG 4 Individually Shielded Pair Cable Reel23 AWG solid bare copper conductorsFoamed polyethylene InsulationColor striping on white conductorsIndividually shielded twisted pairsOverall 65% braid shield and drain wireRipcord under the jacketFlame rated polyvinyl chloride jacketThird party verified to ISO 11801 class F (Cat 7)NEC CM, CEC CMG FT4, RoHS compliant

View More
images

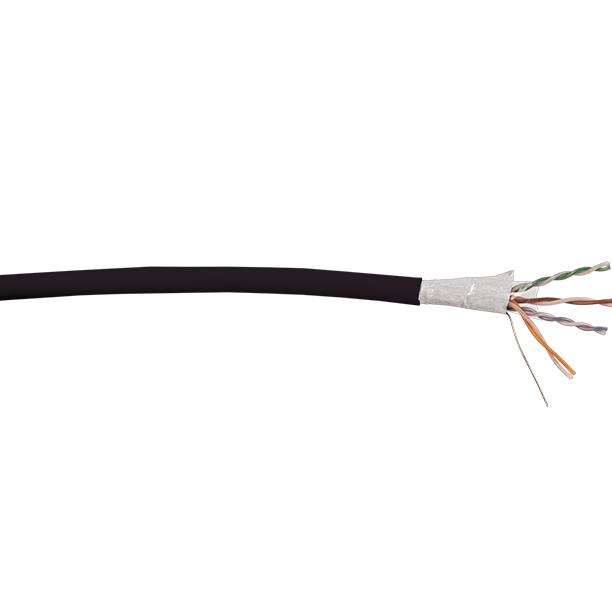

24-4P-L8SH

Cable Reel22 AWG solid bare copper conductorsFoamed polyethylene InsulationIndividually shielded twisted pairsOverall 65% braid shield and drain wireRipcord under the jacketFlame rated polyvinyl chloride jacketThird Party verified to Category 8NEC CMR, CEC CMG FT4, RoHS Compliant1000 Foot Spools Standard

View More
