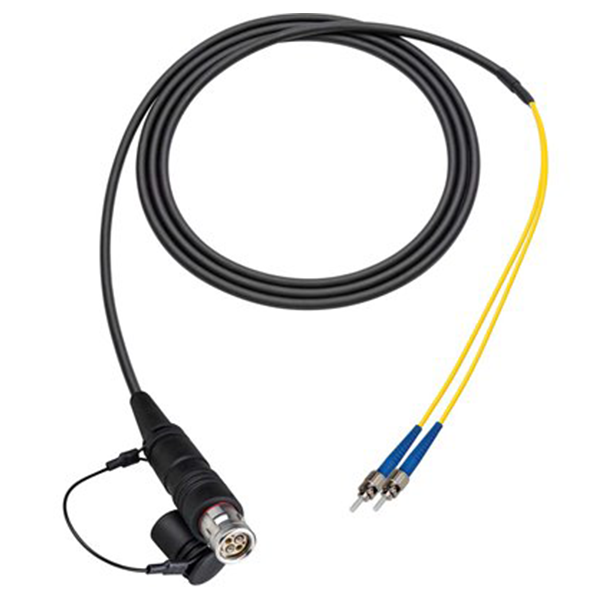

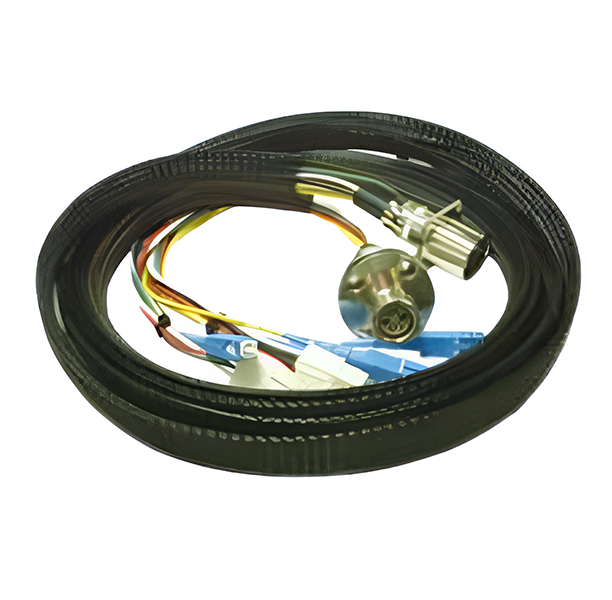

Delivered with the camera receptacle at one end and either open-ended fibers/copper leads or another SMPTE connector at the opposite end. Can be factory-terminated to custom lengths, reducing on-site labor and potential splicing errors
Complies with SMPTE ST 311 (hybrid fiber-optic camera cable) and SMPTE ST 304 (connector) standards. Incorporates two single-mode fibers for signal transmission and two (or more) copper conductors for power and control.
The camera-end connector is typically a SMPTE 304-style receptacle (female). Stainless steel connector housings provide durability and corrosion resistance. Protective dust caps (tethered) help prevent contamination and damage when the cable is not in use.
Typical insertion loss: ≤ 0.5 dB at 1.3 µm Return loss: ≥ 45 dB at 1.3 µm Ensures clean, stable signal transmission over long distances
7 mm or 9 mm outer diameter (OD) cable versions, balancing ruggedness and flexibility. Jackets typically available in PVC or TPU for different environmental requirements (e.g., studio vs. outside broadcast).

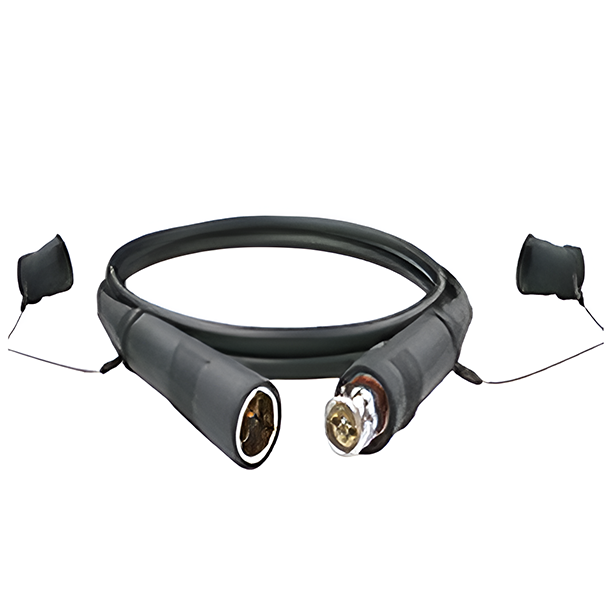

Delivered with the camera receptacle at one end and either open-ended fibers/copper leads or another SMPTE connector at the opposite end. Can be factory-terminated to custom lengths, reducing onsite labor and potential splicing errors
